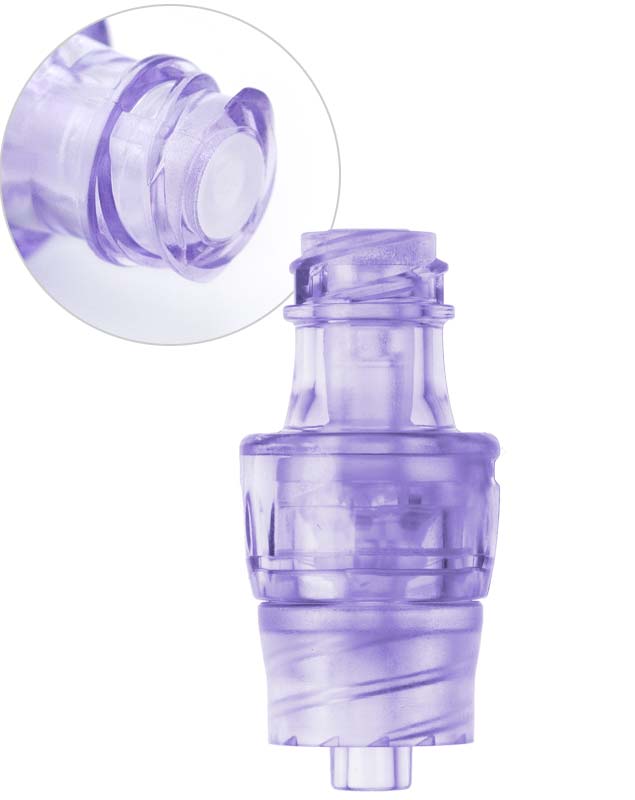

nPulse™ Valve Platform

Neutral Under Pressure

The nPulse Valve Platform is designed to complement best clinical practices to reduce the risk of catheter-related bloodstream infections (CRBSI), and reflux-induced catheter occlusions.1-5 Whatever your facility protocol, the nPulse platform has the lowest measured displacement and blood reflux of market leading valves.3 It features neutral fluid displacement at both Luer connection or disconnection to help reduce reflux-related occlusions. The valve’s clear housing allows caregivers to visualize the entire fluid path during priming and flushing. Equally important is maintaining the integrity of the septum, which helps ensure the absence of spaces that make disinfection difficult and create a pathway for pathogens into a patient’s bloodstream.1 The nPulse is available in multiple configurations to meet various clinical needs.

nPulse™ Valve Platform
icon

Self-opening split septum (SOSS) results in no abrasion to sealed septum plane3,4

icon

Flat, smooth, swabable surface promotes easy and complete cleaning3,4

icon

Linear fluid path allows for easy blood clearing5

icon

Lowest measured displacement and blood reflux of market leading valves5

icon

Defends against microbial ingress2 with dual-seal design

icon

Low priming volume allows for lower flush volumes

icon

Eliminates clinician clamping to control valve-induced reflux4

TESTING PROVES EFFECTIVENESS

NP Medical conducted an extreme-use clinical simulation to determine whether our nPulse Neutral needle-free connector would break down or allow pathogens to pass through the septum. Its performance met our high microbial ingress standards and after the study protocol was run, all the nPulse test samples yielded zero microorganism growth.5


ORDERING INFORMATION

FLL = Female Luer Lock

MLL = Male Luer Lock

INLET / OUTLET

PART NUMBER

HOUSING MATERIAL

PRESSURE

RATING

PRIMING VOLUME

COMMERCIAL AVAILABILITY

FLL/MLL

K150-SSG6G6SA

Polycarbonate

325 psi

0.10 ml

Bulk, non-sterile

FLL/MLL

K150-001

Polycarbonate

325 psi

0.10 ml

Packaged, Sterile (EtO)

REFERENCES

  1. Jarvis W., MD. Choosing the Best Design for Intravenous Needleless Connectors to Prevent Bloodstream Infections. Infection Control Today, August 2010
    https://www.infectioncontroltoday.com/infusion-vascular-access/choosing-best-design-intravenous-needleless-connectors-prevent-bloodstream
  2. Ryder M, RN, PhD. Bacterial transfer through needle-free connectors: Comparison of nine different devices. Poster presented at the Annual Society for Healthcare Epidemiology of America (SHEA) conference 2007, Abstract 412.
  3. Guideline for the Prevention of Intravascular Catheter-Related Bloodstream Infections, 2011
    http://www.cdc.gov/hicpac/pdf/guidelines/bsi- guidelines-2011.pdf
  4. FDA Medical Device Safety Alert, July 28, 2010: Letter to Infection Control Practitioners Regarding Positive Displacement Needleless Connectors
  5. Data on file at NP Medical. Competitive Product Assessment, January 2012
  6. Rx Only. For safe and proper use of this device, refer to the directions for use.
